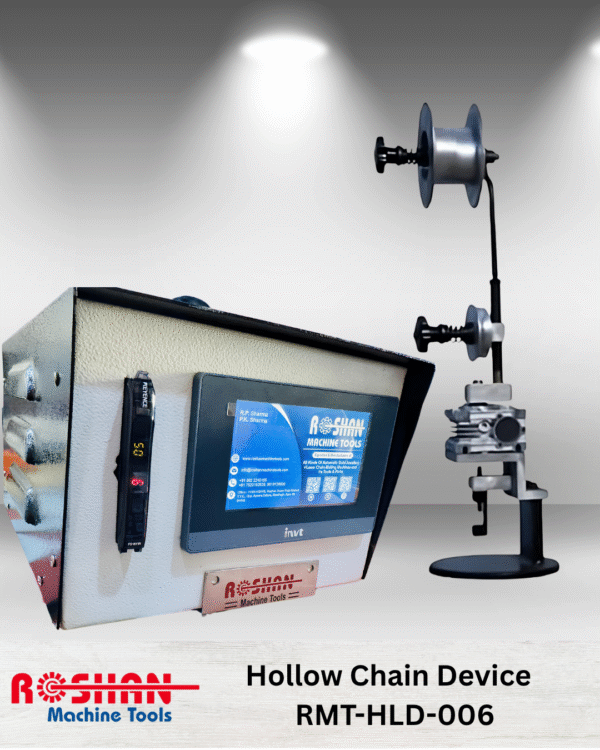

Hollow Chain Device RMT-HLD-006

Description

Model: RMT-HLD-006
Product Name: Hollow Chain Device
Application: Orientation and feeding of crimped hollow wires for gold chain making machines

⚙️ Technical Features:

• Wire Orientation Mechanism:
  Automatically rotates to maintain precise orientation of crimped hollow wires during operation.

• Wire Size Compatibility:
  Supports wire diameters from 0.25 mm to 3.00 mm

• Wire Loading:
  Manual wire installation by operator when machine is stopped; compatible with special wire reels.

• Sensor Technology:
  Integrated optical fiber sensor with manual sensitivity adjustment via trimmer for high-precision detection.

• Compatibility:

  • Electrically and mechanically pre-configured for chain machine integration.

  • Compatible with standard and alternating Figaro chain machines.

• Motor Type:
  Stepper motor ensures constant speed and stable wire orientation throughout the process.

• Component Flexibility:
  No need to replace components when switching between wire sizes.

• Control Unit:

  • Compact and intuitive interface

  • User-friendly operation panel

  • Equipped with control logic and feedback systems

• Power Supply:
  Standard single-phase (typically 220V / 50Hz) – customizable as per machine specs (exact rating on request)

• Material Construction:
  High-grade aluminum and steel for durability and smooth rotation

📦 General Details:

• Installation Type: Machine-mountable (base clamping or custom fitting)

• Rotation Type: Automatic rotary orientation

• Suitable Wire Types: Crimped hollow wires for gold jewellery chains

• Machine Status: Operates only when chain machine is in production mode

• User Interaction: Manual setup; fully automatic during production
